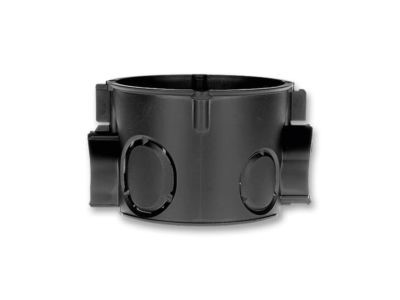

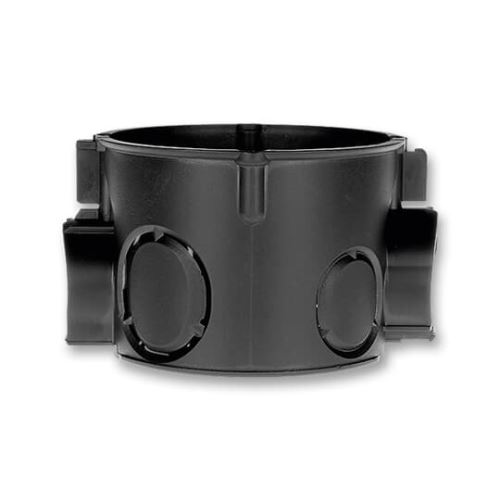

Krabice univerzální, pod omítku
Krabice univerzální, pod omítkuZobrazit více +
Skladem
Cena po registraci:8,00 Kč s DPH
Krabice univerzální, pod omítku; 1055-04
| Mounting method: | Flush mounted (plaster) |
| Shape: | Round |
| Construction type: | Built-in installation box (device box) |
| Model: | Single |
| Provided with revolving ring: | false |
| Connectable: | true |
| Equipped with: | None |
| Diameter: | 2.36220 |
| Diameter: | 60 |
| Length: | 2.55905 |
| Length: | 65 |
| Width: | 2.55905 |
| Width: | 65 |
| Depth: | 1.77165 |
| Depth: | 45 |
| Internal depth: | 1.73228 |
| Internal depth: | 44 |
| Suitable for wall/board thickness: | 60 |
| Suitable for wall/board thickness: | 60 |
| For number of electric fittings: | 1 |
| Mounting switching equipment: | Screw or spread out |
| With screws: | false |
| Housing feed-through by break-out opening: | true |
| Housing feed-through by seal membrane: | false |
| Housing feed-through by nozzle: | false |
| Housing feed-through by step membrane: | false |
| For tube diameter: | 16 mm |
| Suitable for cable diameter: | 0.15748 |
| Suitable for cable diameter: | 4 |
| Pipe locking: | false |
| Pipe locking optional: | false |
| Inlet from the rear: | false |
| Number of inlets: | 6 |
| Material: | Plastic |
| Halogen free: | true |
| Surface protection: | Untreated |
| Colour: | Black |
| Degree of protection (IP): | IP20 |
| Degree of protection (NEMA): | - |
| Cover model: | None |
| Transparent cover: | false |
| Cover attachment: | - |
| Sealable: | false |
| Circuit integrity: | None |
| With screening: | false |
| Air tight: | false |
| Max. conductor cross section: | - |
| Max. conductor cross section: | - |
| Number of poles of the clamp: | 2 |
| Clamp position fixed: | false |
| Luminaire hook mounting: | false |
| Nozzle: | None |
| With nail lugs: | false |
| Special application: | None |
