S201-B16
S201-B16Zobrazit více +
Skladem ext.
Cena po registraci:85,10 Kč s DPH

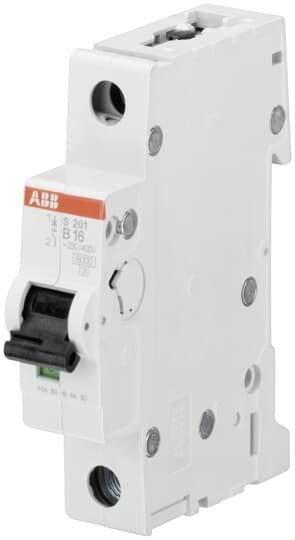

S201-B16; 1 fázový jistič, jmenovitý proud In: 16 A, vypínací charakteristika: B, vypínací schopnost Icn: 6 kA
| Built-in depth: | 2.71653 |
| Built-in depth: | 69 |
| Release characteristic: | B |
| Number of poles (total): | 1 |
| Number of protected poles: | 1 |
| Rated current: | 16 |
| Rated voltage: | 230 |
| Rated insulation voltage Ui: | 440 |
| Rated impulse withstand voltage Uimp: | 4 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 |
| Voltage type: | AC/DC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 10 |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | - |
| Frequency: | 50 |
| Current limiting class: | 3 |
| Flush-mounted installation: | false |
| Concurrently switching neutral conductor: | false |
| Over voltage category: | 3 |
| Pollution degree: | 3 |
| Additional equipment possible: | true |
| Width in number of modular spacings: | 1 |
| Degree of protection (IP): | IP20 |
| Ambient temperature during operating: | -13 |
| Ambient temperature during operating: | -25 |
| Connectable conductor cross section multi-wired: | 0.75 |
| Connectable conductor cross section multi-wired: | 0.0011 |
| Connectable conductor cross section solid-core: | 0.75 |
| Connectable conductor cross section solid-core: | 0.0011 |
| Explosion-proof: | false |
